    GoCD Troubleshooting issues

    This page is mainly for newer users of GoCD, to help with troubleshooting issues.

    GoCD Agent not registering with the GoCD Server

    This issue shows up either as an agent not showing up on the “Agents” page, or showing up with a status of “Missing”. If this happens, start troubleshooting by looking at the agent log files.

    See the end of the installation documentation page for your operating system to find the location of the log files. There will be log files for the agent, the agent-bootstrapper and agent-launcher. Any errors at the end of these files might be interesting. Some common errors are:

    1. Unable to reach the GoCD Server

      This manifests itself as logs in go-agent-launcher.log with lines similar to this:

      ERROR go.agent.launcher.ServerCall:69 - Couldn't access Go Server with base url: http://YOUR_SERVER:8153/go/admin/agent-launcher.jar: java.net.ConnectException: Connection refused
      ERROR go.agent.launcher.ServerBinaryDownloader:116 - Couldn't update admin/agent-launcher.jar. Sleeping for 1m. Error: java.lang.Exception: Couldn't access Go Server with base url: http://YOUR_SERVER:8153/go/admin/agent-launcher.jar: java.net.ConnectException: Connection refused
      INFO  apache.commons.httpclient.HttpMethodDirector:438 - I/O exception (java.net.ConnectException) caught when processing request: Connection refused
      INFO  apache.commons.httpclient.HttpMethodDirector:444 - Retrying request


      The problem here is that the agent cannot reach the server, either because of a problem with the network or because the ports used by the server are not accessible due to firewall restrictions. The GoCD server uses two ports, 8153 and 8154 (by default). These two ports need to be accessible by the agents.

    2. Unable to connect - SSL handshake error or connection reset

      This manifests itself as logs in go-agent-bootstrapper.out.log with lines similar to this:

      180679 [main] ERROR com.thoughtworks.go.agent.launcher.ServerCall  - Couldn't access Go Server with base url: https://YOUR_SERVER:8154/go/admin/agent-launcher.jar: javax.net.ssl.SSLHandshakeException: Remote host closed connection during handshake
      java.lang.Exception: Couldn't access Go Server with base url: https://YOUR_SERVER:8154/go/admin/agent-launcher.jar: javax.net.ssl.SSLHandshakeException: Remote host closed connection during handshake
      at com.thoughtworks.go.agent.launcher.ServerCall.invoke(ServerCall.java:78)
      at com.thoughtworks.go.agent.launcher.ServerBinaryDownloader.headers(ServerBinaryDownloader.java:130)
      at com.thoughtworks.go.agent.launcher.ServerBinaryDownloader.downloadIfNecessary(ServerBinaryDownloader.java:106)
      at com.thoughtworks.go.agent.launcher.AgentLauncherImpl.launch(AgentLauncherImpl.java:78)
      at com.thoughtworks.go.agent.bootstrapper.AgentBootstrapper.go(AgentBootstrapper.java:72)
      at com.thoughtworks.go.agent.bootstrapper.AgentBootstrapper.main(AgentBootstrapper.java:54)
      at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
      at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
      at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
      at java.lang.reflect.Method.invoke(Unknown Source)
      at com.simontuffs.onejar.Boot.run(Boot.java:306)
      at com.simontuffs.onejar.Boot.main(Boot.java:159)
      Caused by: javax.net.ssl.SSLHandshakeException: Remote host closed connection during handshake
      at sun.security.ssl.SSLSocketImpl.readRecord(Unknown Source)
      at sun.security.ssl.SSLSocketImpl.performInitialHandshake(Unknown Source)
      at sun.security.ssl.SSLSocketImpl.startHandshake(Unknown Source)
      at sun.security.ssl.SSLSocketImpl.startHandshake(Unknown Source)
      at org.apache.http.conn.ssl.SSLConnectionSocketFactory.createLayeredSocket(SSLConnectionSocketFactory.java:394)
      at org.apache.http.conn.ssl.SSLConnectionSocketFactory.connectSocket(SSLConnectionSocketFactory.java:353)
      at org.apache.http.impl.conn.DefaultHttpClientConnectionOperator.connect(DefaultHttpClientConnectionOperator.java:141)
      at org.apache.http.impl.conn.PoolingHttpClientConnectionManager.connect(PoolingHttpClientConnectionManager.java:353)
      at org.apache.http.impl.execchain.MainClientExec.establishRoute(MainClientExec.java:380)
      at org.apache.http.impl.execchain.MainClientExec.execute(MainClientExec.java:236)
      at org.apache.http.impl.execchain.ProtocolExec.execute(ProtocolExec.java:184)
      at org.apache.http.impl.execchain.RetryExec.execute(RetryExec.java:88)
      at org.apache.http.impl.execchain.RedirectExec.execute(RedirectExec.java:110)
      at org.apache.http.impl.client.InternalHttpClient.doExecute(InternalHttpClient.java:184)
      at org.apache.http.impl.client.CloseableHttpClient.execute(CloseableHttpClient.java:82)
      at org.apache.http.impl.client.CloseableHttpClient.execute(CloseableHttpClient.java:107)
      at com.thoughtworks.go.agent.launcher.ServerCall.invoke(ServerCall.java:55)
      ... 11 more
      Caused by: java.io.EOFException: SSL peer shut down incorrectly
      at sun.security.ssl.InputRecord.read(Unknown Source)
      ... 28 more


      or this:

      2986 [main] ERROR com.thoughtworks.go.agent.launcher.ServerCall  - Couldn't access Go Server with base url: https://YOUR_SERVER:8154/go/admin/agent-launcher.jar: java.net.SocketException: Connection reset
      java.lang.Exception: Couldn't access Go Server with base url: https://YOUR_SERVER:8154/go/admin/agent-launcher.jar: java.net.SocketException: Connection reset
      at com.thoughtworks.go.agent.launcher.ServerCall.invoke(ServerCall.java:78)
      ...


      The problem here is that the agent is not able to connect securely to the server, which points to an invalid certificate. This can happen if an agent has connected to one GoCD server and is then pointed to another GoCD server. It will try to connect to the new server using the certificate that was for the older server and it will fail.

      The resolution is to move or rename the agent.jks file found the in the config/ directory of the agent and restarting the agent. That should make it connect using the correct certificate.

      If you’re using full end-to-end transport security, this error might mean that the server’s certificate has changed and you need to provide the update certificate.

    3. Incompatible Java version

      This manifests itself as logs in go-agent-bootstrapper.log with lines similar to this:

      242 [main] INFO com.thoughtworks.go.util.PerfTimer  - Performance: Downloading new admin/agent-launcher.jar with md5 signature: e9SXM6cdV5kSkpVEmymHIg== took 37ms
      Exception in thread "main" java.lang.reflect.InvocationTargetException
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:57)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
        at java.lang.reflect.Method.invoke(Method.java:622)
        at com.simontuffs.onejar.Boot.run(Boot.java:306)
        at com.simontuffs.onejar.Boot.main(Boot.java:159)
      Caused by: java.lang.UnsupportedClassVersionError: com/thoughtworks/cruise/agent/launcher/AgentLauncherImpl : Unsupported major.minor version 51.0
        at java.lang.ClassLoader.defineClass1(Native Method)
        at java.lang.ClassLoader.defineClass(ClassLoader.java:643)
        at java.security.SecureClassLoader.defineClass(SecureClassLoader.java:142)


      The problem here is that the version of Java used by the agent is too old. In this example, Java 6 was used by an agent, with a 16.2.0 GoCD server, which needs Java 7.

    Command not found (git, svn, mvn, ant or others)

    This issue shows up in one of three ways as you can see below. The resolution for all three issues is the same – to ensure that the PATH environment variable is correct.

    1. During “Check Connection”

      This can also happen with other version control systems such as SVN, TFS, etc.

      Resolution: Check the PATH environment variable of the GoCD Server’s java process. Ensure that the directory that the command is available is in the list. On Windows, the procexp tool from Microsoft’s Windows SysInternals might be useful to check this. It shows per-process environment variables in an easy way.

    2. During material polling

      Look for an error message at the bottom-right of any page, which looks like this:

      Clicking on that shows an error like this:

      The GoCD server log, go-server.log (location can be found at the bottom of the installation documentation page for your operating system) will have a message like this:

      This can also happen with other version control systems such as SVN, TFS, etc.

      Resolution: Check the PATH environment variable of the GoCD Server’s java process. Ensure that the directory that the command is available is in the list. On Windows, the procexp tool from Microsoft’s Windows SysInternals might be useful to check this. It shows per-process environment variables in an easy way.

    3. During the running of a task, in the console output

      This shows up as a message in the console output, like this:

      This can also happen with other version control systems such as SVN, TFS, etc. It can also happen with any other command used in a task, such as Maven, Ant, Rake or even any other shell-script where it cannot be found in PATH.

      Resolution: Check the PATH environment variable of the GoCD Agent’s java process. Ensure that the directory that the command is available is in the list. On Windows, the procexp tool from Microsoft’s Windows SysInternals might be useful to check this. It shows per-process environment variables in an easy way.

    Agent is not being assigned or “Nothing gets built”

    This shows up as a pipeline which stays in the “Building” (yellow) state for a long time:

    Click on the stage bar and then the job, to reach the console log, and you might see a build whose status is “Scheduled” with the agent status being “Not yet assigned”, like this:

    Resolution: If this is happening, it means that a suitable agent has not been found for this job. The reasons for this can be:

    1. No agent is available (free and not building). Check the “Agents” page to see if all agents are busy. If so, once one of them becomes free, then this build will start.

    2. If you do see available agents, then check whether the job has resources defined in its config. If so, it means that the job is looking for an agent with those resources. Check the “Agents” page to see whether there are agents which have the resources needed by the job and are available (not building).

    3. If the previous two options don’t solve the problem, check whether the pipeline is a part of an environment (in the “Environments” page or in the config). If it is, then any agent that can pick up a job from that pipeline needs to be a part of that environment as well.

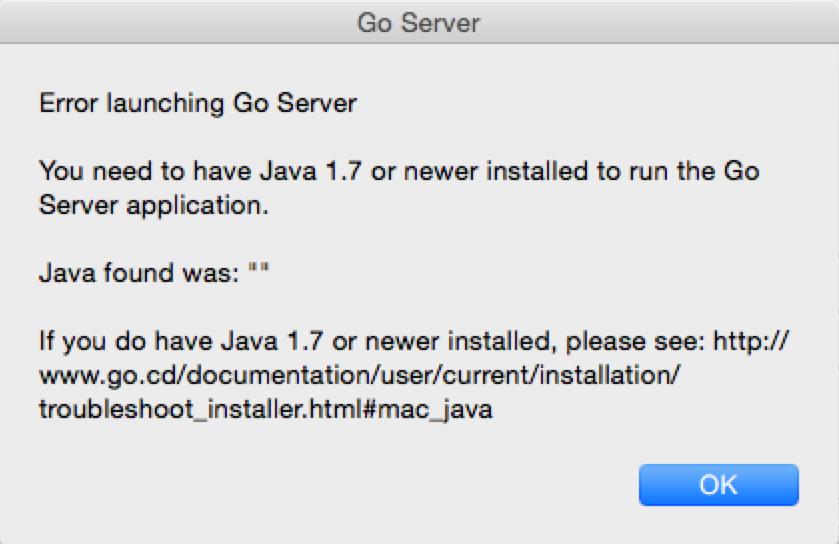

    If you were greeted with a message such as this, when trying to use GoCD on Mac OSX:

    Mac installer - Java 1.7+ message

    you might have a Java installation in either a non-standard location or older than Java 1.7. The GoCD Mac application tries to find the correct Java installation to use, using this command:

    /usr/libexec/java_home -v "1.7+"


    If that fails, then you see the message shown above.

    In case you are sure that you have Java 1.7 or newer installed, and the application cannot find it at all, then the application can be forced to use a Java installation of your choosing, using the GO_JAVA_HOME environment variable. Suppose the Go Server.app file is in /Applications, and the Java installation you want GoCD to use is at: /Library/MY_Java/Contents/Home, then you can start the GoCD Server with that Java using this (in a terminal emulator):

    GO_JAVA_HOME="/Library/MY_Java/Contents/Home" open "/Applications/Go Server.app"


    Please note that this is used to set the Java home, and not the path to the

    java


    executable. Usually, GO_JAVA_HOME/bin/java will need to be a working Java 1.7+ executable.

    Incompatible java version while upgrading to 17.x version

    Java 7 support is removed as part of 17.1 release. This implies an existing installation of GoCD will stop working after an upgrade if it is configured to run with Java 7.

    In such cases, one of the following error messages would be seen in the logs:

    Unrecognized VM option "MaxMetaSpaceSize=256m"


    or

    Unsupported major.minor version 52.0


    On Windows:

    This error will be logged, in <GO_INSTALLATION_DIR>/go-server-wrapper.log on server and <GO_INSTALLATION_DIR>/go-agent-bootstrapper-wrapper.log on agent, if startup failed due to incompatible version of Java.

    Resolution: Update the environment variable GO_SERVER_JAVA_HOME, GO_AGENT_JAVA_HOME to the Java 8 path and restart the GoCD server/agent.

    On Linux:

    This error will be logged, in <GO_LOG_DIR>/go-server.out.log on server and <GO_LOG_DIR>/go-agent-bootstrapper.log on agent, if startup failed due to incompatible version of Java.

    Resolution: Update the environment variable JAVA_HOME set in /etc/default/go-server, /etc/default/go-agent to Java 8 path, and restart the GoCD server/agent.

    GoCD SPA Pages - There was an unknown error performing the operation. Possible reason (timeout)

    The GoCD SPA page periodically makes AJAX API calls to fetch the current state of the entity and refreshes the page, this is done to ensure the information on the page is not stale.

    The AJAX API request has a timeout set to 5000 milliseconds, if the server does not respond within that duration the request is cancelled and an error is shown on the page.

    Resolution: If this is happening, consider increase the timeout period by specifying the go.spa.timeout

    Port 8153 (HTTP) or 8154 (HTTPS) could not be opened

    This issue shows up an error when starting GoCD Server:

    Port 8153 could not be opened. Please Check if it is available
    Port 8154 could not be opened. Please Check if it is available


    This could be happening if port 8153 or 8154 are already used. In order to change default ports, edit /etc/default/go-server if you installed GoCD Server, or go-server.default located in root directory if you run it via zip:

    GO_SERVER_PORT=8153
    GO_SERVER_SSL_PORT=8154
